BLISTER PACKING SYSTEM

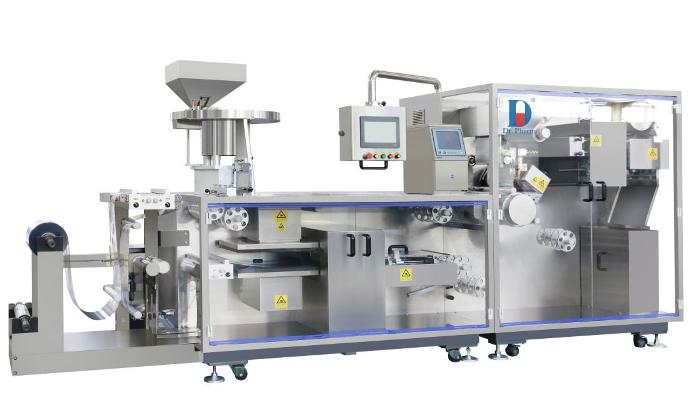

HIGH-SPEED BLISTER PACKING - MODEL GDPH-270F
The GDPH-270F High-Speed Blister Packing System is equipped with six (6) independent servo motors to control the machine's various functions. It is designed to run smoothly, with rapid format change-over, adjustment, and low noise output. The servo-controlled indexing function also ensures precise transmission and positioning. The model GDPH-270F is flexible, providing scalability while meeting FDA regulatory and compliance requirements.
It can work with two combinations of materials:
- Aluminum and Plastic
- Aluminum and Aluminum
Technical specifications
- Max. capacity: 600 Blister per min. (depending on actual product size and packing)
- Max. punching time: 200 times / min.
- Mold area: 240mm x 280mm
- Max forming depth: 12mm
- Max step distance: 240mm
- Material: PVC/PP/PVDC (280 x (0.25-0.35)mm) / Aluminum foil (280 x 0.02mm)
- Air consumption: 450L / min.
- Water consumption: 3.2 L / min
- Number of servo motors: 6 units
- Power: 20kW
- Dimensions: 4500mm x 1000mm x 1800mm
- Weight: 3000kg
TURNKEY PACKAGING SOLUTIONS
IG provides fully engineered turnkey production and packaging systems. Our proven process includes conveyor design, packaging line design, engineering, integration, testing, commissioning, and start-up. Our team leads in developing a wide range of turnkey packaging solutions. We offer solutions for production processing, feeding, orienting, weighing, filling, bagging, pouching, wrapping, conveying, cartoning, case packing, and palletizing.
Our team will assist you in designing entire filling operations that include our equipment and that of other partnering companies, with responsibility for the successful design, configuration, and installation of the entire line.
Values and benefits which IG brings to the projects:
- Single source responsibility
- Over 22 years of packaging experience to save time and money
- Personal attention and open discussions
Please contact IG for additional information or speak to our experienced representative today.
